Description

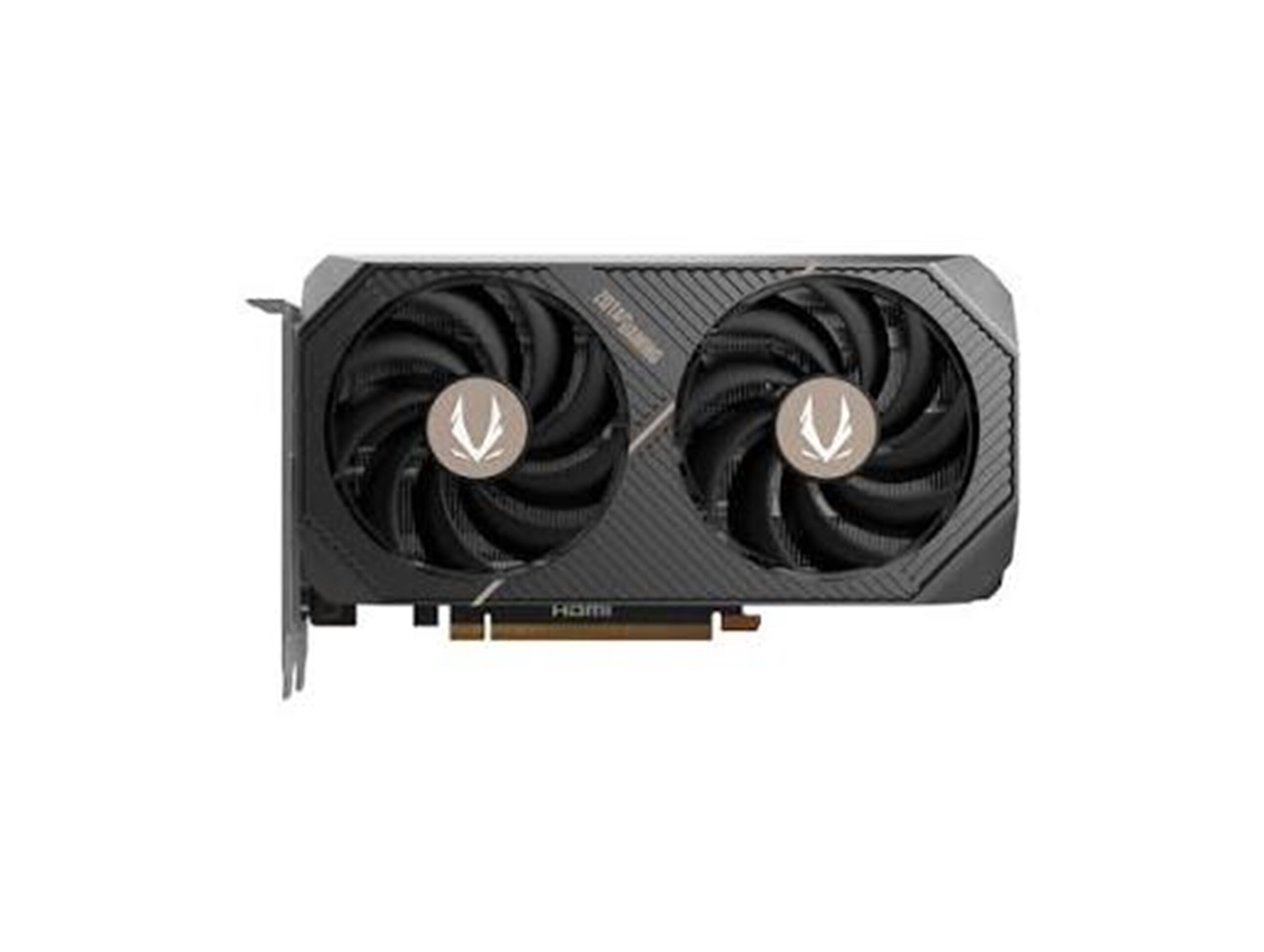

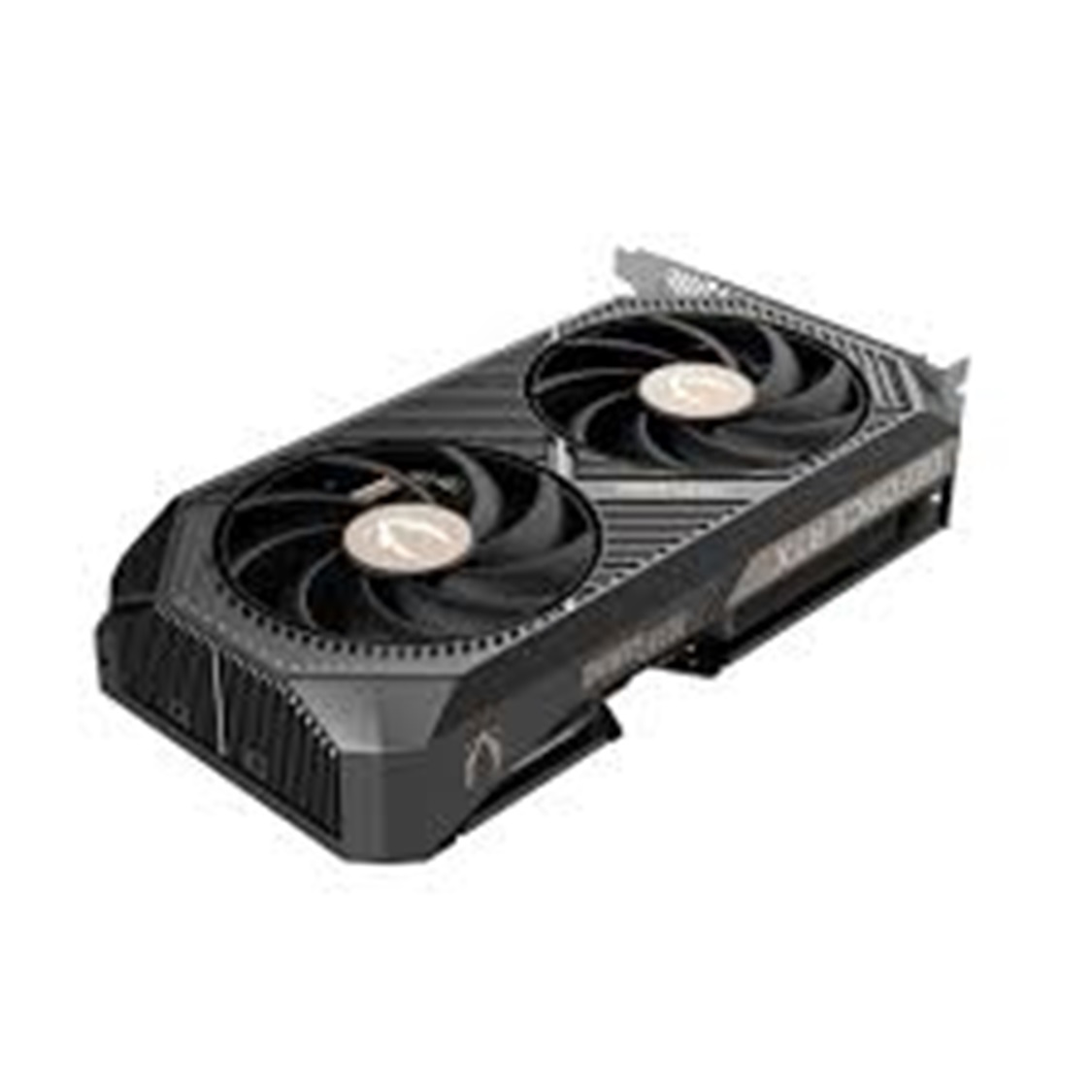

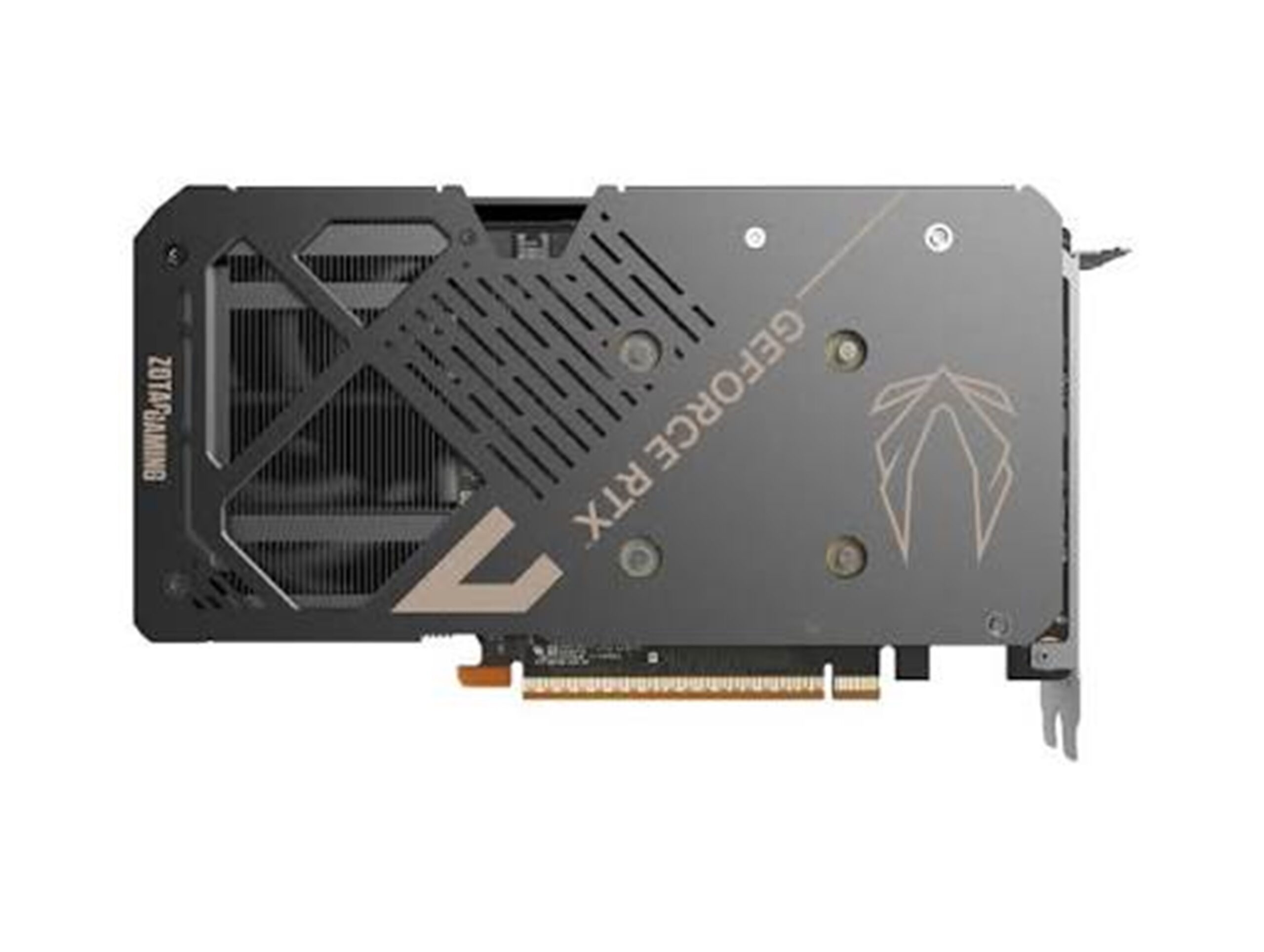

The ZOTAC GAMING GeForce RTX 5060 AMP (Model: ZT-B50600F-10M) is a factory-overclocked graphics card built on NVIDIA’s Blackwell architecture. It is designed for high-performance 1080p gaming and capable 1440p gaming with DLSS 4 support, while maintaining a compact dual-slot design suitable for Small Form Factor (SFF) PCs.
Key Features
- NVIDIA GeForce RTX 5060 GPU
- NVIDIA Blackwell Architecture
- 8GB GDDR7 VRAM
- Factory Overclock (Boost Clock: 2550 MHz)
- NVIDIA DLSS 4 with Multi Frame Generation
- 4th Generation Ray Tracing Cores
- 5th Generation Tensor Cores
- Dual 90 mm BladeLink cooling fans
- Compact SFF-Ready 2-slot design
- PCIe 5.0 x8 interface
- FireStorm Utility for monitoring and overclocking
Specifications
| Specification | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3,840 |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Boost Clock | 2550 MHz |
| Interface | PCIe 5.0 x8 |
| AI Performance | Up to 614 AI TOPS |
| Display Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Maximum Displays | 4 |
| Power Connector | 1× 8-pin PCIe |
| Power Consumption | 155W |
| Recommended PSU | 600W |
| Card Size | 220.5 × 120.25 × 41.6 mm |
| Slot Size | 2-slot |
| Operating System | Windows 10/11 (64-bit) |
Ideal For
- High-refresh 1080p Ultra gaming
- Smooth 1440p gaming with DLSS 4 enabled
- Content creation and AI-assisted workflows
- Compact Mini-ITX and SFF PC builds
Pros
- Fast GDDR7 memory
- Compact and efficient cooling
- Quiet dual-fan design
- Latest DisplayPort 2.1b and HDMI 2.1b connectivity
- Factory overclock for better out-of-box performance
Reviews
There are no reviews yet.
