Description

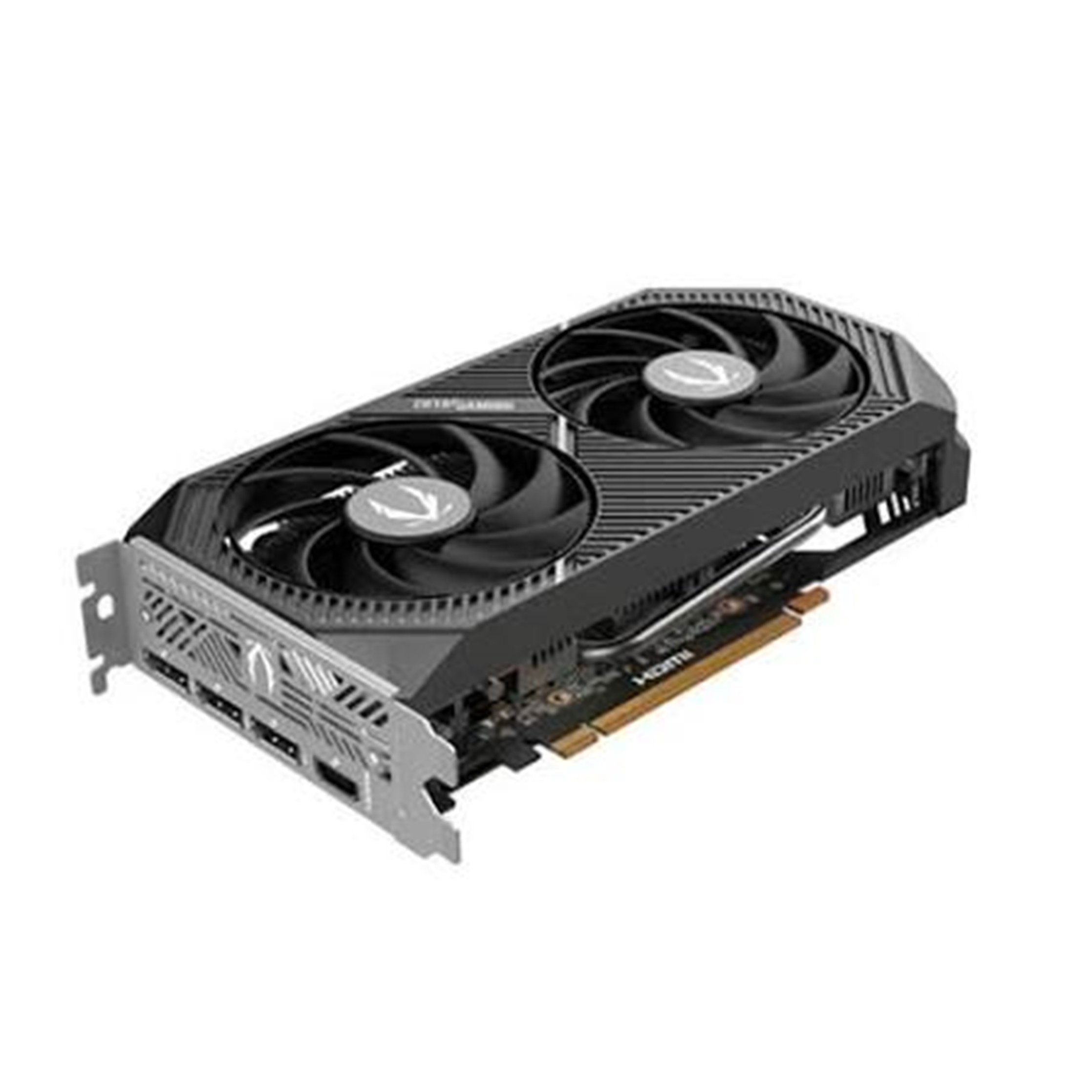

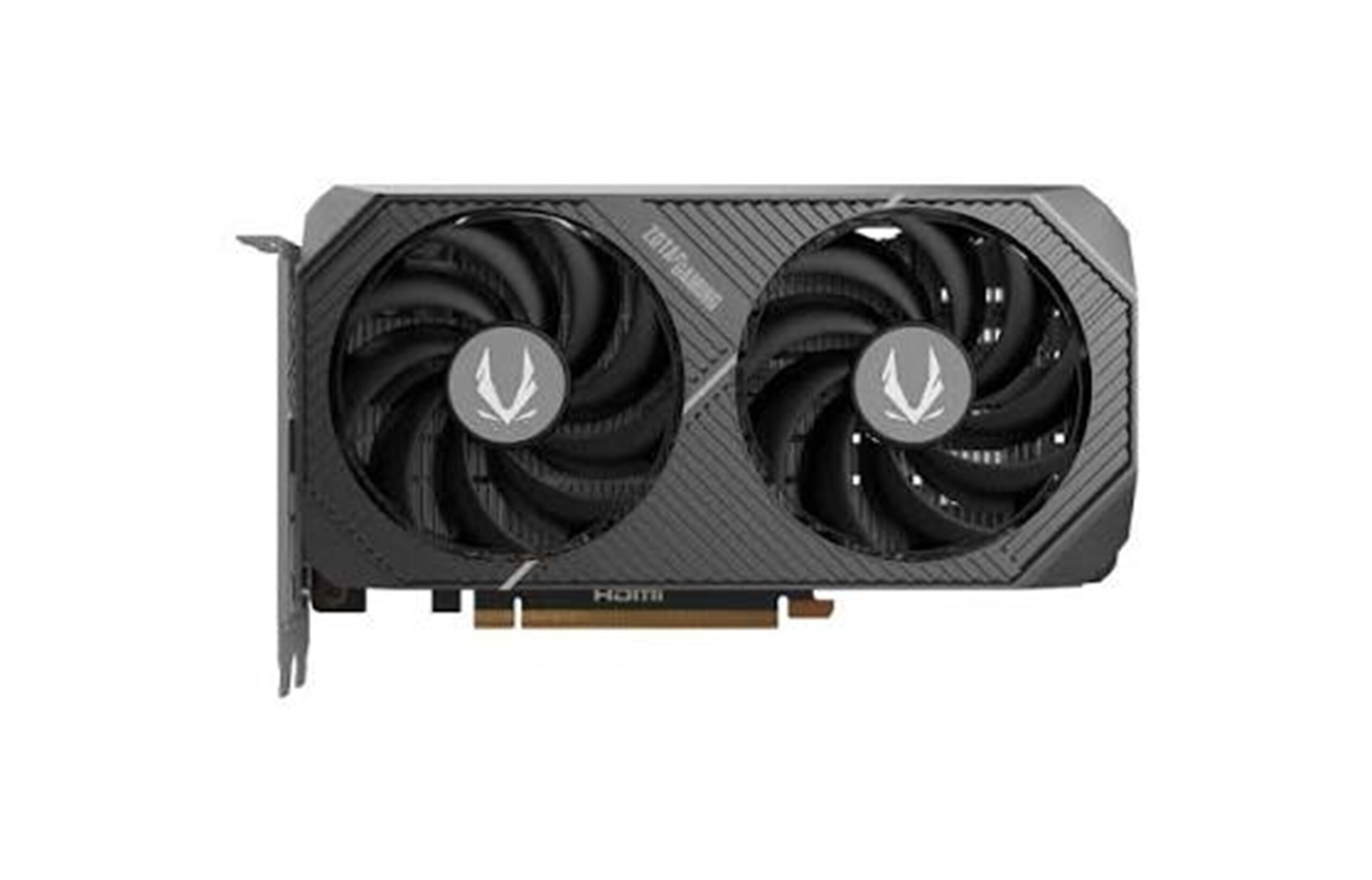

The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC GDDR7 (Model: ZT-B50610H-10M) is a compact, factory-overclocked graphics card built on NVIDIA’s latest Blackwell architecture. It is designed for high-performance 1080p and 1440p gaming while fitting into small-form-factor (SFF) PC builds.
Key Features
- GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell Architecture)
- CUDA Cores: 4,608
- Memory: 8GB GDDR7
- Memory Interface: 128-bit
- Memory Speed: 28 Gbps
- Boost Clock: Up to 2,602 MHz (Factory Overclocked)
- Interface: PCI Express 5.0 x8
- Cooling: IceStorm 2.0 dual-fan cooling with BladeLink fans
- Fan Technology: FREEZE Fan Stop (fans stop during low temperatures for silent operation)
- Backplate: Durable metal backplate
- Power Connector: 1 × 8-pin PCIe
- Recommended PSU: 600W
- Maximum Power Consumption: 180W
Display Outputs
- 3 × DisplayPort 2.1b
- 1 × HDMI 2.1b
- Supports up to 4 displays
- Up to 8K resolution with Display Stream Compression (DSC) on supported displays.
Gaming Technologies
- NVIDIA Blackwell Architecture
- DLSS 4 with AI-powered frame generation
- 4th Generation Ray Tracing Cores
- 5th Generation Tensor Cores
- NVIDIA Reflex
- NVIDIA Broadcast
- NVIDIA Studio Drivers
- G-SYNC support
- DirectX 12 Ultimate
- Vulkan 1.4
- OpenGL 4.6
Physical Dimensions
- Length: 220.5 mm
- Height: 120.25 mm
- Width: 41.6 mm (2-slot design)
